S-RTK100A Portable RTK Module & S-PACK100 For SLAM100-slam100 phone holder-S-Vest100

In stock(0)
Sku:  S240724
Weight:  5600g
As low as $90.00
Reward Points With this product, you earn 90 loyalty points.
  • No Need For Outdoor Closed-loop
  • No Need For Outdoor Control Points
  • High-precision Positioning
  • Simple & Portable
  • Multiple Working Modes
  • 4G/Bluetooth Transmission

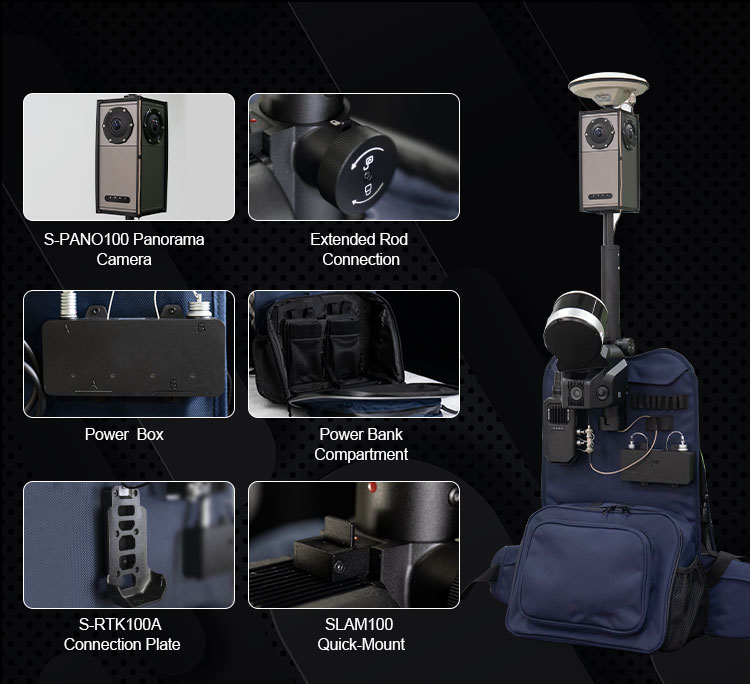

S-PACK100 provides a platform where S-RTK100A, SLAM100, S-PANO100 panorama camera module and external battery can be mounted together, which largely improves SLAM100 working efficiency. Hands free S-PACK100 weighs 3.65 kg without SLAM100 or power banks, and its size is 330*240*555mm.

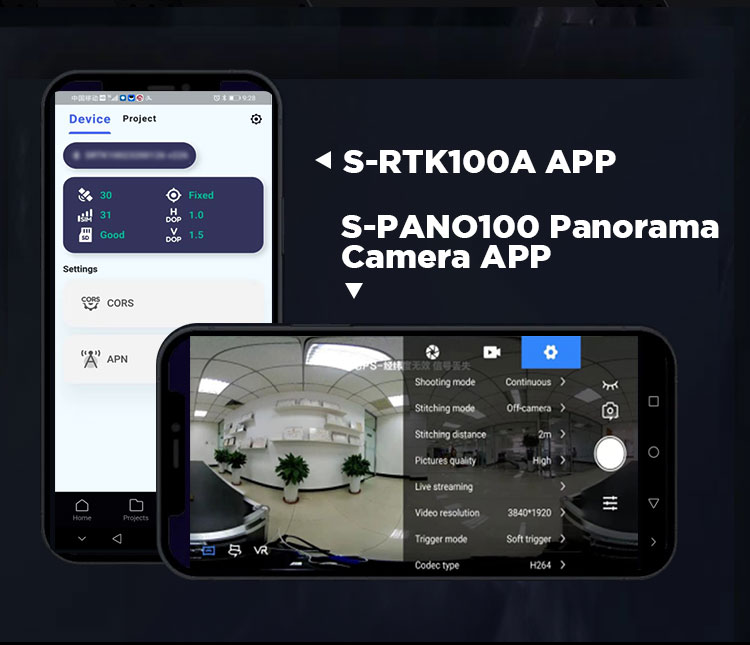

S-PANO100 panoramic camera module is one of the extended accessories of the S-PCAK100. The whole body is made of aviation aluminum. After sandblasting and anodic oxidation, it makes the protection level reach IP66 and can work normally in the environment of-10℃ - 50℃. The S-PANO100 uses four starlight-grade fisheye lens with effective pixels up to 32 million pixels. With mobile APP control, it can quickly obtain 360°and 8K panoramic images. Data time synchronization can reach ms-level, which can meet the requirements of SALM 100 panoramic image acquisition and coloring.

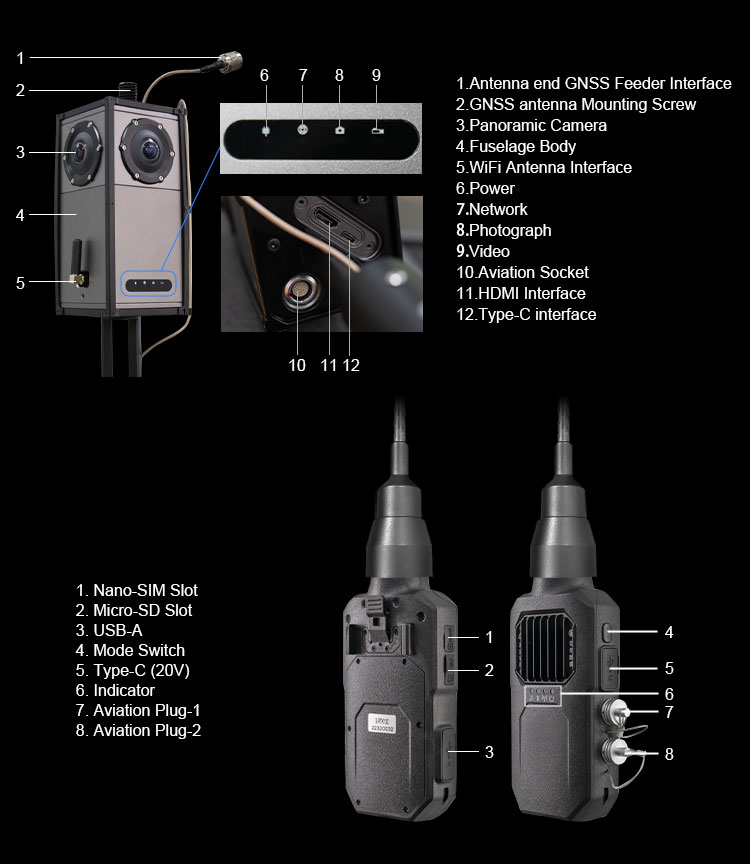

S-RTK100A is a high-precision satellite receiver, supporting world's major GNSS and multi-channel receive. Using multiple data transmission paths, as well as high-performance sensors, S-RTK100A can provide real-time differential data, so that it obtains centimeter-level 3D positioning data, to provide accurate and reliable system solutions for high-precision application needs. The S-RTK100A can be used with SLAM100A mounting on S-PACK100 backpack, or used alone as a mobile RTK device, providing flexible applications and high-accuracy positioning data acquisition.

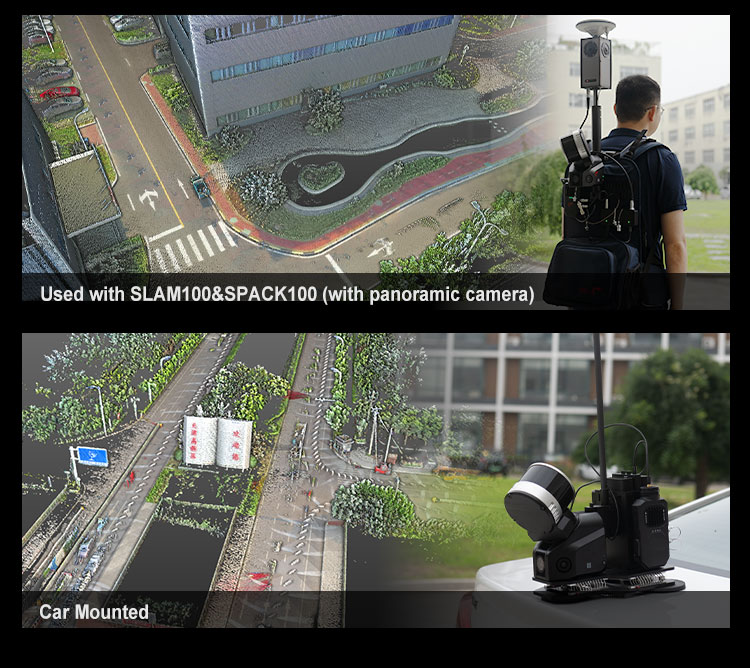

S-Mobile100 is LIDAR scanner vehicle-mounted platform. with a total weight of 5.2kg, which can support the expansion of LIDAR scanner, RTK module, and power supply module, and support the SLAM100 to operate in the form of vehicle-mounted operation, which can greatly improve the operational efficiency of SLAM100. S-Mobile100 can improve the working efficiency while effectively reducing the physical consumption of operators, which greatly expands the flexibility of SLAM100 application.



Notice:

1.Please leave a note when ordering to tell us which country/region are you in since the 4G module of S-RTK100A will be different. Pay attention to the power bank specification requirements, if there is no qualified power bank available around, please contact us before you make an order.

Highlights:

No Need For Outdoor Closed-loop

No Need For Outdoor Control Points

High-precision Positioning|

Simple & Portable

Multiple Working Modes

4G/Bluetooth Transmission

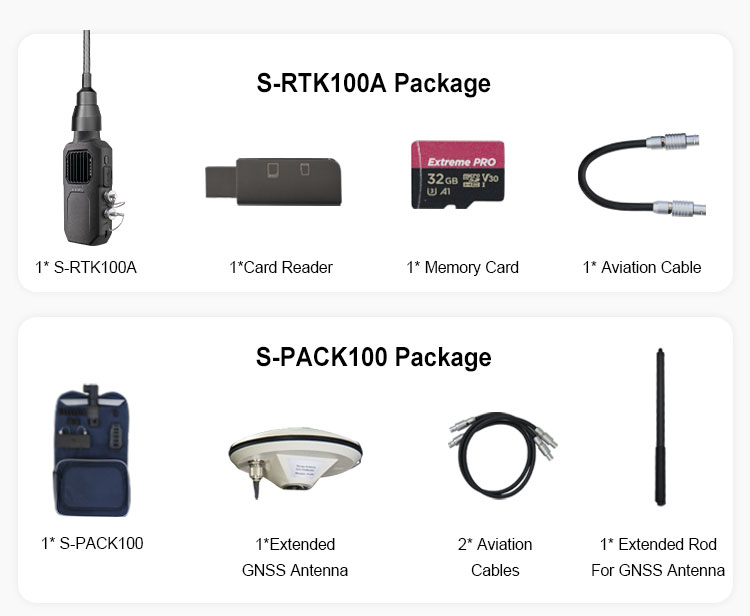

Package List :

S-RTK100A:

1* S-RTK100A

1* Aviation Cable

1* Memory Card

1* Card Reader



S-PACK100:

1* S-PACK100(Excluding SLAM100&S-RTK100A&S-PANO100 panoramic camera)

1* Extended GNSS Antenna

1* Aviation Cables

1* Extended Rod For GNSS Antenna

2*Power Bank (Optional)

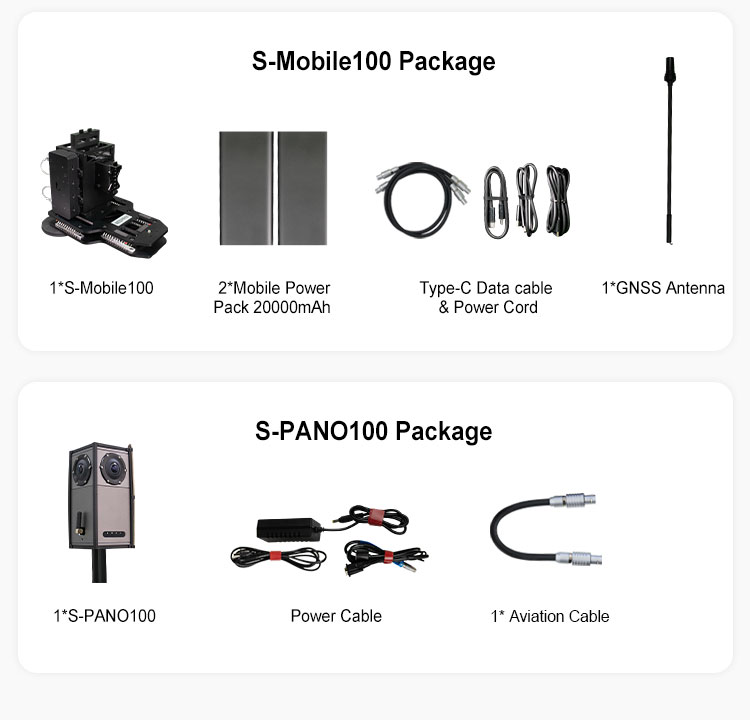

S-PANO100:

1*S-PANO100

1*Aviation Cable

1*Power Cable



S-Mobile100:

1*S-Mobile100(Excluding SLAM100&S-RTK100A)

2*Mobile Power Pack 20000mAh

1*GNSS Antenna

Type-C Data cable

Power Cord



Optional:

Extended Rod For SLAM100










More Information
Specification
